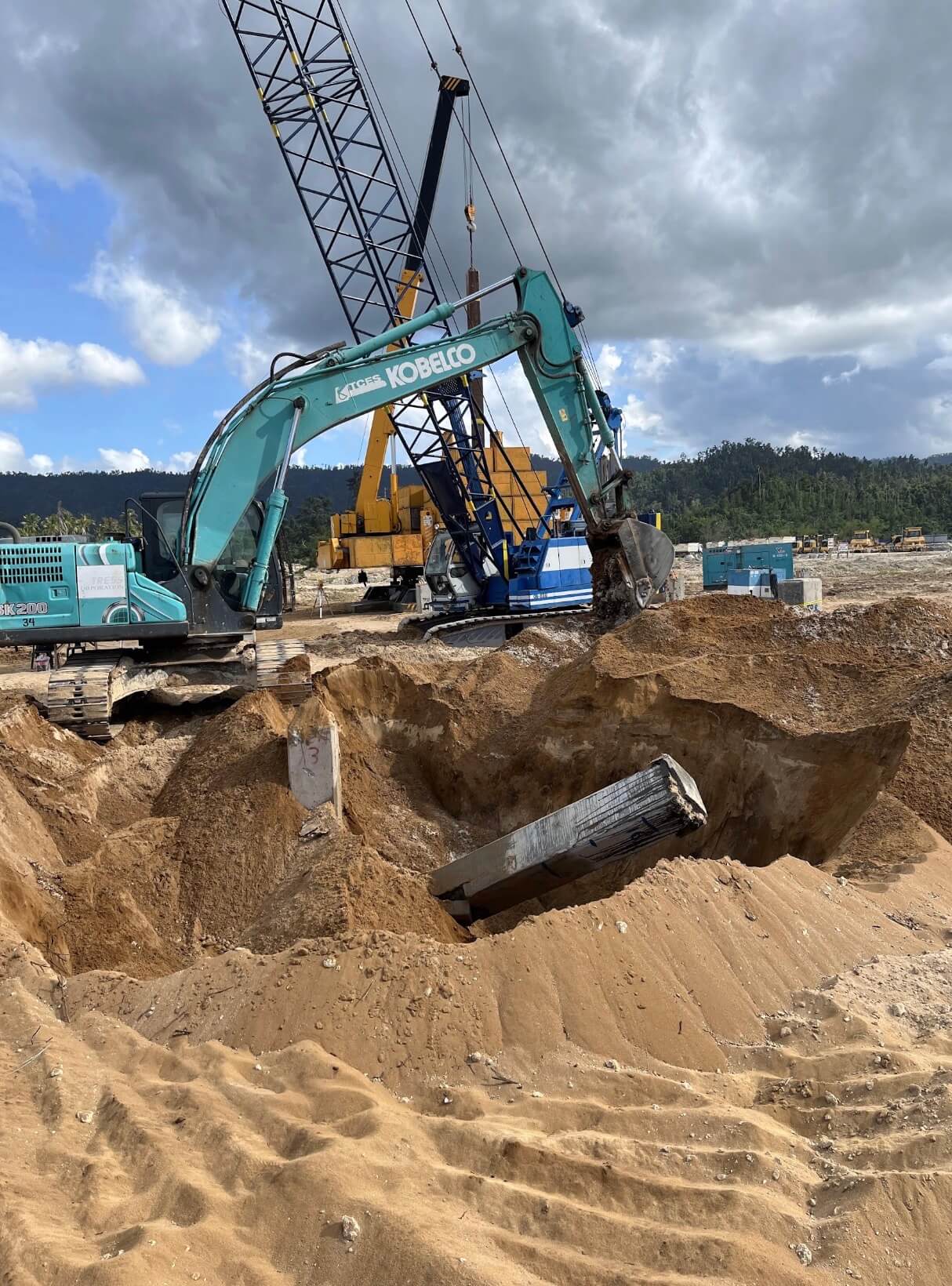

Foundation defects are impossible to detect through visual inspection alone. While a pile may appear structurally above ground, hidden imperfections within the concrete can affect its long-term performance. This is where the Low Strain Pile Integrity Testing (PIT) plays an important role.

Pile Integrity Testing (PIT) is a non-destructive method that evaluates the continuity and condition of concrete piles. By analyzing stress waves generated through a controlled impact, engineers can identify potential defects such as voids, cracks, necking, or changes in pile geometry without damaging the structure.

Early detection offers significant advantages. Identifying defects before construction progresses allows project teams to investigate issues, implement corrective measures, and avoid more extensive repairs later in the project lifecycle.

Beyond reducing repair costs, Pile Integrity Testing (PIT) also minimizes delays caused by unexpected foundation problems. Reliable test results provide engineers with greater confidence that installed piles meet project specifications and are capable of performing as intended.

Pile Integrity Testing (PIT) is commonly incorporated into quality assurance programs for commercial buildings, bridges, industrial developments, and public infrastructure. When combined with other evaluation methods such as Pile Dynamic Analysis (PDA) or Static Load Testing (SLT), it contributed to a more comprehensive understanding of foundation performance.

Investing in foundation testing during construction is often far more economical than addressing structural issues after a project has been completed. Through proactive quality control, project owners can improve safety, reduce financial risks, and support the long-term durability of their developments.

Modern construction projects often utilize multiple pile testing methods to evaluate foundation performance. Among the most commonly used techniques are Pile Dynamic Analysis (PDA), Pile Integrity Testing (PIT), and Crosshole Sonic Logging (CSL). While each method contributes valuable information, they serve different purposes.

PDA (Pile Dynamic Analysis)

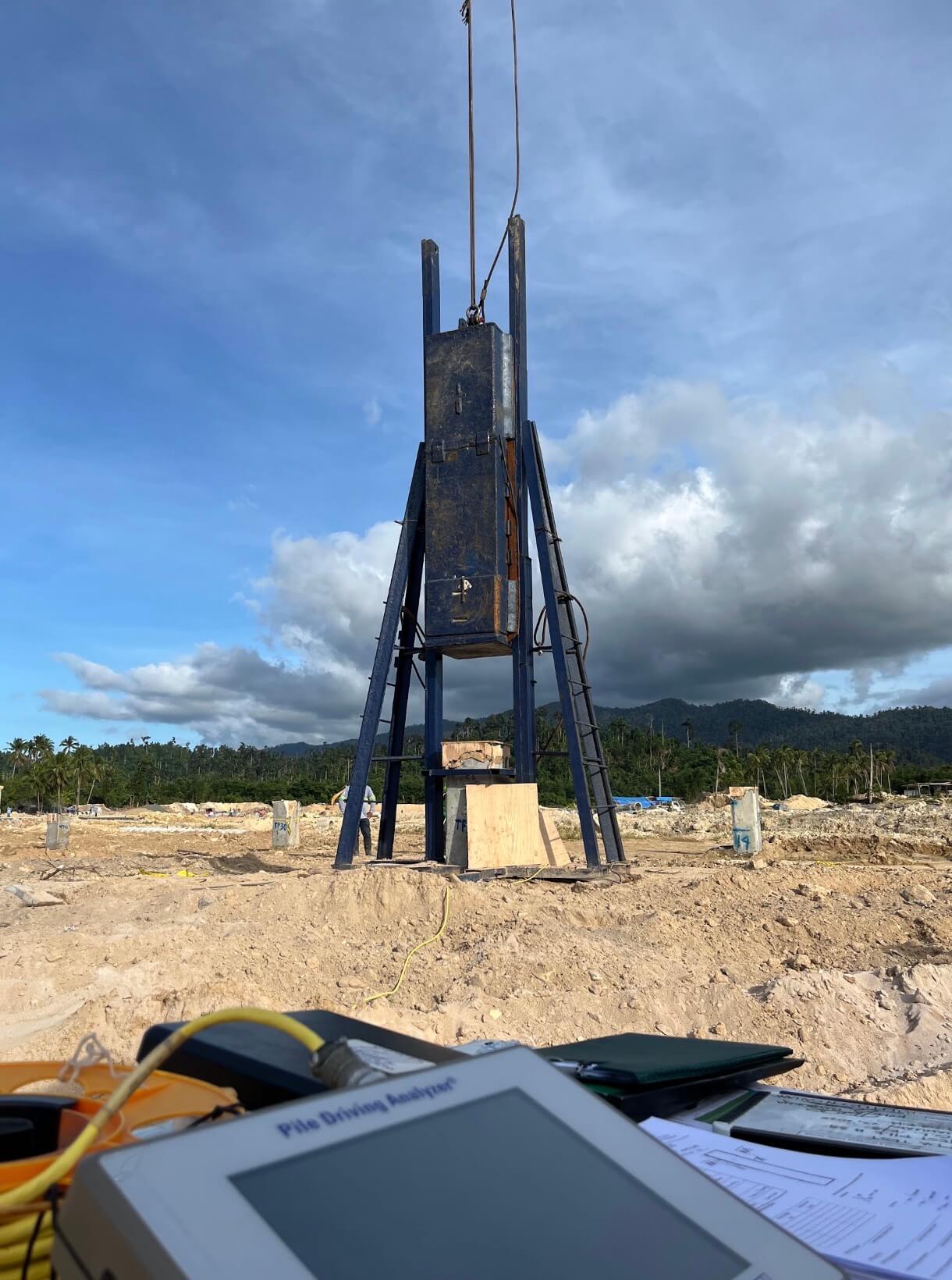

PDA Testing evaluates both pile capacity and pile integrity. When impact hammers are used, hammer driving performance is also evaluated through the measurement of force and velocity during impact loading. Engineers commonly use this method to assess load-bearing capacity and installation effectiveness.

PIT (Pile Integrity Test) - Low Strain Integrity Testing

PIT is a low-strain integrity testing method used to identify potential defects within a pile. By analyzing stress wave reflections, engineers can detect cracks, voids, or changes in pile geometry that may affect structural performance. While It does not provide information about pile bearing capacity. However, it is the quickest integrity testing which may be practical if the project has hundreds or even thousands of piles to be tested.

CSL (Crosshole Sonic Logging)

While technically also a pile integrity test, Crosshole Sonic Logging is commonly called by its acronym CSL or “ultrasonic test”. One way to differentiate this from the Low Strain Integrity test (commonly called PIT) is to determine whether the pile to be tested with the integrity testing method has multiple steel tubes installed in the pile. Only cast in place piles, or those made at the site such as bored piles or diaphragm walls can be installed with the steel tubes and thus tested with this method. Pre-cast piles or those made in the factory and delivered at the site normally do not have steel tubes along the length of the pile and thus do not use this method. For precast piles /driven piles that are either circular or square concrete piles, the common method is the Low Strain Integrity Test or PIT.

The CSL test uses ultrasonic signals transmitted between access tubes embedded within concrete piles. This method helps evaluate internal concrete quality and identify anomalies such as voids or poorly consolidated sections. CSL is normally used for larger diameter and longer piles especially when the accuracy limitationS of the Low strain Integrity Test (PIT) on these larger piles become more relevant.

Which Test is Best?

The answer depends on project objectives. PDA focuses on pile capacity, PIT evaluates pile integrity in the quickest manner, and CSL normally is the more accurate integrity testing method for larger and longer piles. Rather than competing methods, these testing techniques often compliment one another as part of a comprehensive foundation quality assurance program. They are normally used in combination and can also be used in a sudden situational sense when unexpected events transpire, causing doubt in the performance of the piles.

Selecting the appropriate testing method allows engineers to better understand foundation conditions and support long-term structural reliability.

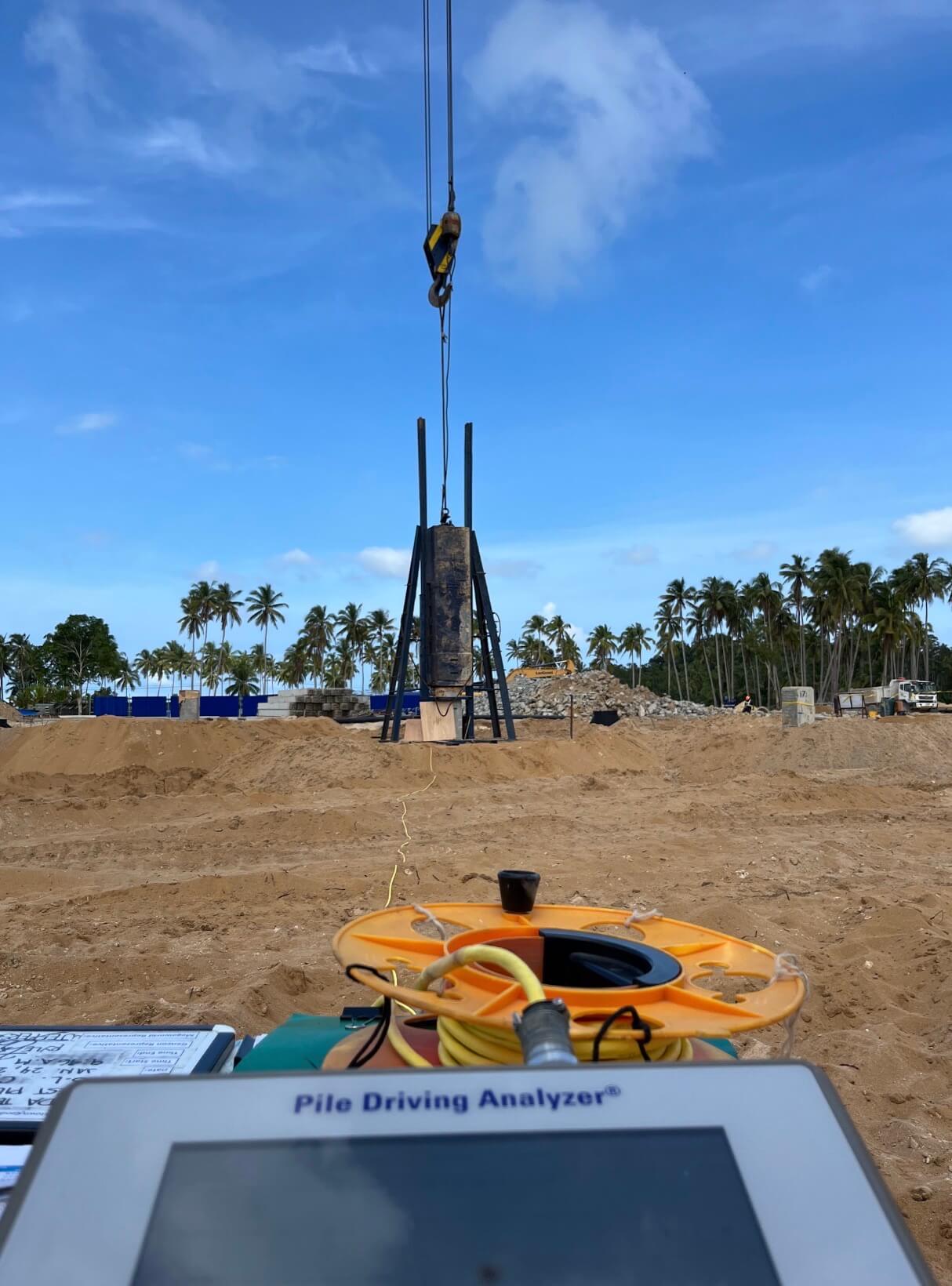

Dynamic pile testing or Pile Dynamic Analysis (PDA) has become one of the most widely used methods for evaluating foundation performance. By using advanced instrumentation and wave analysis techniques, engineers can quickly assess pile behavior and verify design assumptions.

These are the five key benefits of dynamic pile testing:

Faster Results

Unlike other conventional testing methods such as the Static Load Testing, dynamic pile testing provides rapid insights into pile performance. This allows project teams to make timely decisions and keep construction schedules on track.

Cost Efficiency

Because the test requires less extensive setup than many traditional methods, dynamic pile testing can be a cost-effective solution for evaluating multiple piles across a project site.

Verification of Pile Capacity

Pile Dynamic Analysis (PDA) enables engineers to estimate load-bearing capacity and determine whether foundation elements meet project requirements.

Quality Control During Construction

Dynamic pile testing can identify installation-related or integrity concerns and help verify that piles have been driven or installed correctly.

Improved Project Confidence

Reliable testing data reduces uncertainty and supports informed engineering decisions. This can minimize risks associated with foundation performance and long-term structural stability. Since this is also quicker to conduct, more tests can be carried out providing more samples in the entire population of piles. Normally 10-15% are done out of the total number of piles. Some projects have more depending on the designer’s preference and project sensitivity.

For infrastructure, industrial, and commercial developments, dynamic pile testing or Pile Dynamic Analysis (PDA) remains a valuable tool for balancing efficiency, safety, and quality assurance throughout the construction  process.

How Engineers Determine Pile Capacity

Pile capacity refers to the maximum load a pile can safely support without excessive settlement or structural failure. Determining pile capacity is one of the most important steps in foundation design, as it directly affects the safety and stability of a structure.

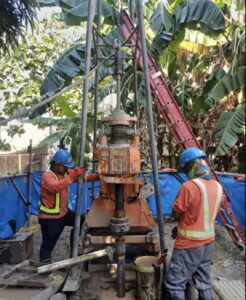

Engineers begin by evaluating site-specific geotechnical conditions. Soil investigations provide critical information about soil strength, density, groundwater conditions, and subsurface layers. Soil investigation is done by “boring” a hole on the ground and collecting samples. Field procedures such as the Standard Penetration Test (SPT) measure the softness or hardness of the soil quantified by what is called the N-values. The soil samples obtained are then sent to the laboratory for further tests. The results and factors from these procedures influence how loads are transferred from the pile to the surrounding ground.

Using this information, engineers perform calculations to estimate both end-bearing resistance and skin friction. End-bearing piles transfer loads to a strong soil or rock layer beneath the surface, while friction piles rely on resistance along the pile shaft. In reality, foundation systems utilize a combination of both mechanisms in varying degrees depending on the soil characteristics.

While theoretical calculations provide initial estimates, pile testing is often performed to verify  actual performance. Dynamic Pile Testing or Pile Dynamic Analysis (PDA) and Static Load Testing (SLT) can provide valuable data regarding load-bearing capacity and pile behaviour under real-world conditions.

Accurate pile capacity evaluation helps optimize foundation design, reduce construction risks, and ensure compliance with engineering standards. By combining geotechnical analysis with field testing, engineers can develop reliable foundation solutions for buildings, bridges, ports, and other infrastructure projects.

As construction demands continue to grow, proper, pile capacity assessment remains essential for delivering safe, efficient, and durable structures.

While Pile Testing Matters Before Construction

Successful construction projects begin long before anything is seen above ground and when steel is erected. One of the most important steps in foundation engineering is pile testing, which helps verify that deep foundations can safely support the loads they are designed to carry.

Pile testing provides engineers with valuable information about pile capacity, structural integrity, and overall foundation performance. By evaluating these factors early in the construction process, project teams can identify potential issues before they become expensive problems.

Without proper testing, defects such as insufficient capacity, installation damage, or construction irregularities may go unnoticed. These hidden issues can result in excessive settlement, structural movement, project delays, and increased repair costs. Early testing helps reduce uncertainty and improve confidence in foundation design. Likewise, inaccurate testing may lead to the pitfalls mentioned.

Several testing methods may be used depending on project requirements. Dynamic pile testing, or Pile Dynamic Analysis (PDA), can evaluate pile capacity, pile integrity, and even driving performance when impact hammers are used. While pile integrity tests such as the Low Strain Integrity Testing (PIT) and Crosshole Sonic Logging (CSL) help identify potential integrity defects. Static load testing provides direct measurements of pile behavior under load and is still considered the gold standard in pile testing methods.

In addition to improving safety, pile testing can help optimize construction schedules and reduce unnecessary costs. Reliable testing data enables engineers to make informed decisions regarding foundation design, material usage, and construction procedures. Pile testing may even be used to optimize the design of piles, leading to cost and time savings.

For infrastructure, commercial, industrial, and residential projects alike, pile testing serves as an essential quality control measure. By confirming that foundations meet design specifications before construction advances, project stakeholders can minimize risk and support the long-term performance of their structures.

Investing in comprehensive pile testing is ultimately an investment in safety, reliability, and the project. It may even lead to substantial cost savings and a faster construction schedule if used for value engineering.

What is Crosshole Sonic Logging

Crosshole Sonic Logging (CSL) at times referred to as "ultrasonic," is a specialized testing method used to evaluate the quality or “integrity” of deep concrete foundations. Commonly performed on drilled shafts, bored piles, and diaphragm walls, CSL helps engineers identify internal defects that are not visible during construction.

CSL is a whole process that involves installing access tubes within the reinforcing cage before concrete placement. The tubes are normally made of steel (GI or BI pipes and at least 37.5mm in diameter up to 50mm). While PVC tubes can be used, these are not advised due to the vast difference in coefficient of thermal expansion between PVC and concrete, which may cause "debonding." When debonding happens, a gap is created between the tubes and concrete, which will affect the data during the CSL test, potentially creating a false defect in the pile.

After the concrete has been placed and cured, ultrasonic (similar to that of marine sonars) transmitter-receivers / “transceivers” are lowered into the tubes. Sound waves are then transmitted through the concrete between the tubes, allowing engineers to assess the material’s consistency and detect potential anomalies.

The process is particularly effective at identifying inhomogeneities that may arise from voids, honeycombing, soil inclusions, concrete material segregation, or poorly consolidated concrete. These defects can reduce the structural performance of a foundation if left undetected.

Unlike visual inspections, CSL provides information about the internal condition of the pile. This makes it a valuable quality assurance tool for large infrastructure projects, high-rise developments, bridges, and other structures that depend on deep foundation systems.

One of the key advantages of crosshole sonic logging is its ability to evaluate concrete quality throughout the entire length of the pile, albeit just evaluating that in between the tubes and in a straight line path. Engineers can use the results to determine whether additional investigation or corrective actions are necessary before construction progresses. Concrete cover evaluation is beyond the capabilities of the CSL test, and other tests should be considered if concrete cover evaluation is a must. Tests like the Thermal Integrity Profiling, or TIP, can do just this.

As modern construction projects demand higher standards of reliability and safety, crosshole sonic logging has become an important component of foundations meeting design expectations and performing as intended throughout the life of the structure.

Common Causes of Pile Foundation Failure | AGES

Pile foundations are designed to transfer structural loads safely into deeper, more stable soil layers. However, when design, installation, or site conditions are not properly evaluated, pile foundation failure can occur, leading to costly repairs, project delays, and safety concerns.

One of the most common root causes of pile foundation failure is inadequate or inaccurate geotechnical investigation. Without a thorough understanding of subsurface conditions, engineers may overestimate soil variability, groundwater conditions, or load-bearing capacity. As a result, even though piles are installed or made with good workmanship and quality, they may not perform as intended under structural loads and pose potential risks.
On the other hand, when engineers underestimate soil conditions, it can result in over-designing of foundations, which can be very costly and time-consuming.

Poor installation practices can also contribute to foundation issues. Misalignment, insufficient embedment depth, damage during pile driving (for driven piles), or poor construction methodology (for bored piles) may reduce the pile’s ability to support the structure. In some cases, construction defects remain hidden until significant settlement or structural distress becomes apparent.

Another factor, although uncommon, is overloading. When actual loads exceed the design assumptions, excessive settlement or pile failure may occur. Changes in building use, additional structural loads, or inaccurate load calculations can increase this risk.

Environmental factors such as soil erosion, scour, and especially seismic activity may also affect long-term pile performance. These conditions can weaken soil support and compromise foundation stability over time.

To minimize these risks, engineers rely on pile testing methods such as dynamic pile testing (PDA) , pile integrity testing (PIT), static load testing (SLT), and crosshole sonic logging (CSL) or ultrasonic testing. These assessments help verify pile capacity, identify potential defects, and confirm compliance with project requirements.

By combining proper site investigation, quality construction practices, and comprehensive pile testing, project teams can significantly reduce the likelihood of foundation failure and improve the long-term performance of critical structures.

What is Dynamic Pile Testing? | AGES

Dynamic pile testing is a widely used method for evaluating the load-bearing capacity and structural integrity performance of foundation piles. Also known as a Pile Dynamic Analysis (PDA) test, this technique helps engineers assess whether a pile can safely support the loads required by a structure.

Unlike traditional testing methods (static load testing, or SLT) that may require large reaction systems and extended testing periods, dynamic pile testing uses controlled impact forces applied to the pile head. Sensors attached to the pile measure force and velocity, allowing engineers to analyze the pile’s behavior and estimate its load capacity. This process provides valuable information regarding pile integrity, foundation reliability, and even hammer / driving performance.

One of the main advantages of pile dynamic analysis is speed. Engineers can obtain results much faster compared to conventional static load testing methods, making it an efficient solution for infrastructure, commercial, industrial, and bridge construction projects. Dynamic pile testing is also considered a cost-effective approach because it minimizes equipment requirements while still delivering reliable performance data. It is also able to test more piles in a day compared to static load testing methods.

In the Philippines, dynamic pile testing is commonly used to verify pile capacity and ensure compliance with DPWH project specifications and also align even with international standards. As construction projects become increasingly complex with the threat of regular earthquakes and seismic events becoming more relevant, accurate foundation testing plays a critical role in reducing risk and ensuring long-term structural stability.

At AGES, dynamic pile testing or PDA is performed by globally certified (PDI / PDCA of USA) experienced engineers using advanced equipment and internationally recognized methodologies. By conducting pile dynamic analysis (PDA) , project owners and contractors can make informed decisions that contribute to safer and more efficient construction outcomes.

Whether for driven piles, bored piles, or major infrastructure developments, dynamic pile testing remains one of the most trusted methods for evaluating foundation performance.
